Volumes

A volume is the object whose appearance is decided almost entirely by how light is transported rather than by what a surface does, which makes it the one place where the choice of renderer changes the picture rather than the polish. Everything on this page applies to k3d.volume; mip follows it where it says so.

Materials

Volumetric objects (volume, mip) carry the same two knobs for the specular highlight of their isodensity surface (default roughness=0.25) - lower roughness makes noisy gradients sparkle like wet tissue, which may even be desired. metalness tints and strengthens the highlight with the transfer-function colour; it never darkens the body, because a volume has no environment reflection to replace the lost diffuse light with.

Light and the environment

Volumetric data (volume, mip) and the points 3d impostors read the same environment: diffuse light from the map’s spherical harmonics plus one dominant directional light distilled from it, so a directional HDRI models volumes consistently with every mesh in the scene.

In advanced a volume also contributes to the occlusion pass - the shell where its accumulated opacity crosses one half - so dense structures cast and receive contact shadows like real surfaces. The two knobs are plot.ao_radius and plot.ao_strength, described in Renderers.

Composing with geometry

Since 3.0.0 a volume composes correctly with meshes that intersect it when depth peeling is enabled (plot.depth_peels >= 3 - fewer layers make the segmentation too coarse to be predictable). The ray march is split into segments bounded by the peel layers, so geometry inside the volume occludes and is occluded sample-accurately, in both renderers:

Volumetric data (volume, mip) and the points 3d impostors read the same environment: diffuse light from the map’s spherical harmonics plus one dominant directional light distilled from it, so a directional HDRI models volumes consistently with every mesh in the scene.

A volume through each renderer

A volume is where the three differ most, because it is the one object whose appearance is almost entirely a question of how light is transported rather than of what the surface does. The same cardiac CT below, at the same alpha_coef, the same transfer function, the same camera and the same environment:

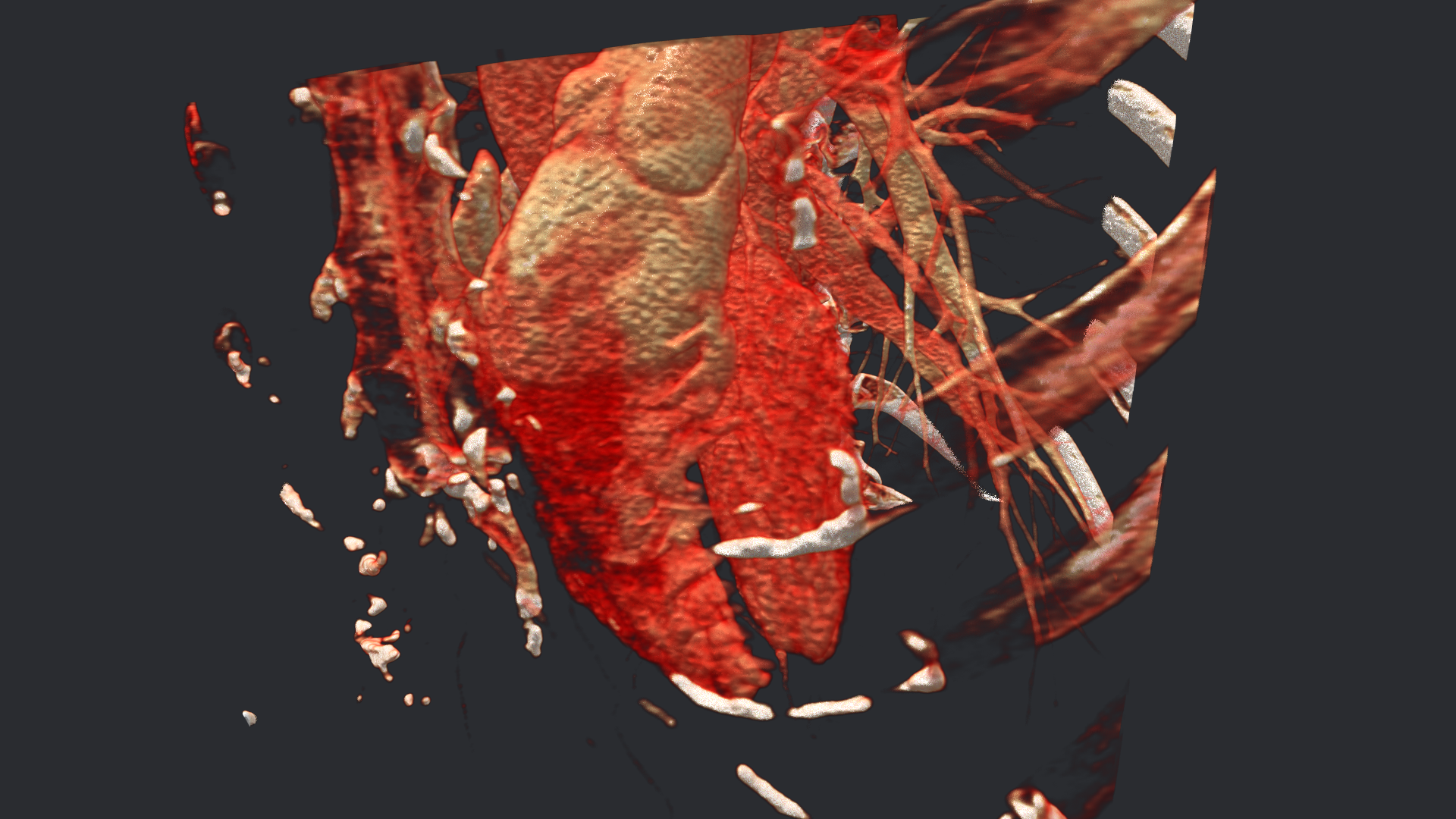

	simple. Four lights that follow the camera and a ray march that shades every sample where it stands. Nothing inside the medium casts onto anything else, so tissue at the back of the chest is as bright as tissue at the front and the image carries no order of depth: the chambers, the vessels behind them and the far ribs all sit on one plane of brightness.

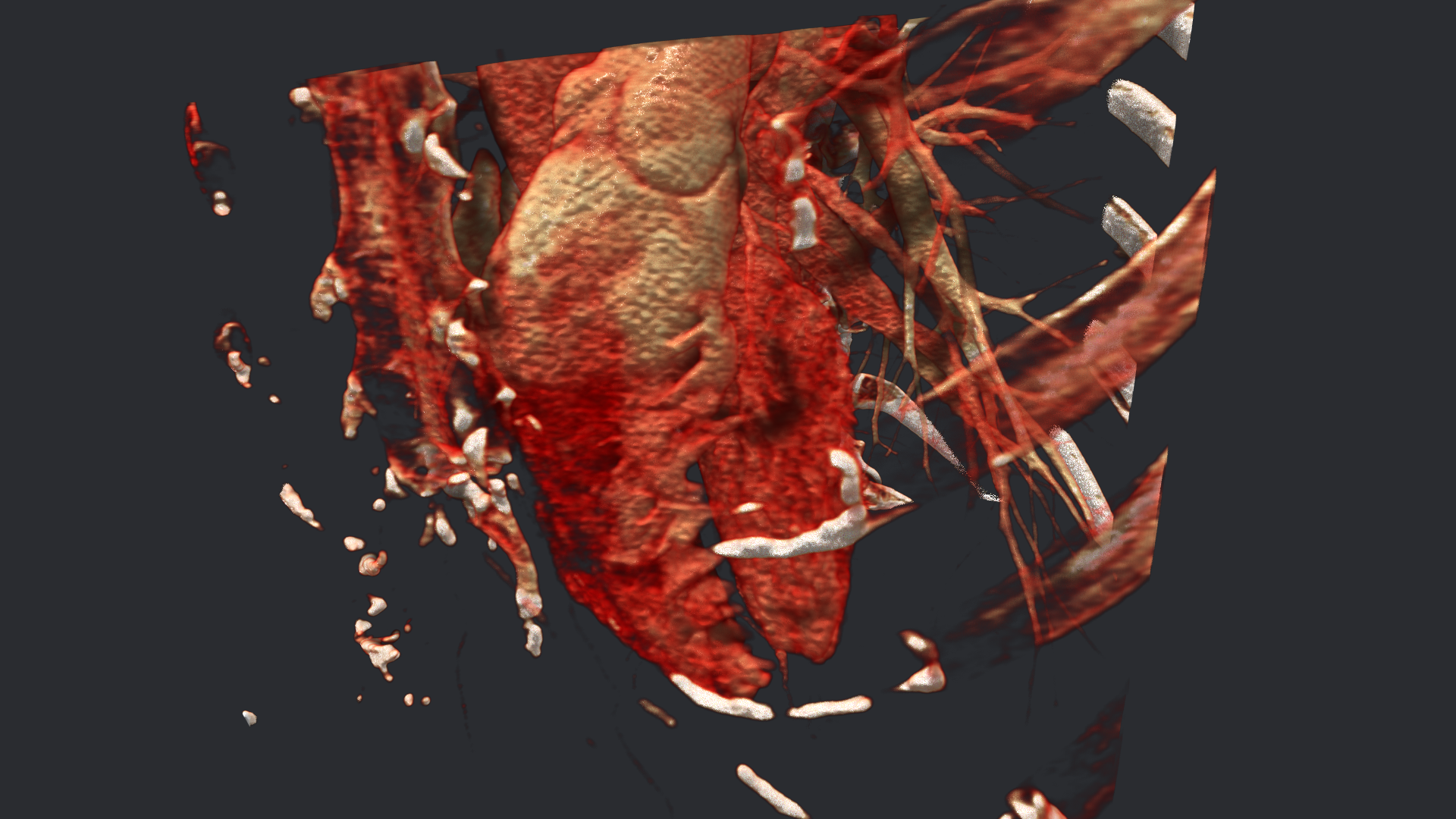

	simple with shadow='on-demand' on the volume - the only change. A light map is built once and the march reads it, so dense tissue darkens what lies behind it. Look at the middle of the frame, where the heart’s body meets what is behind it: the far tissue drops back and the near vessels separate from it. The measured change is 42% of pixels, over a hundred levels in the deepest recesses, and almost nothing at the edges - one light map, not a simulation.

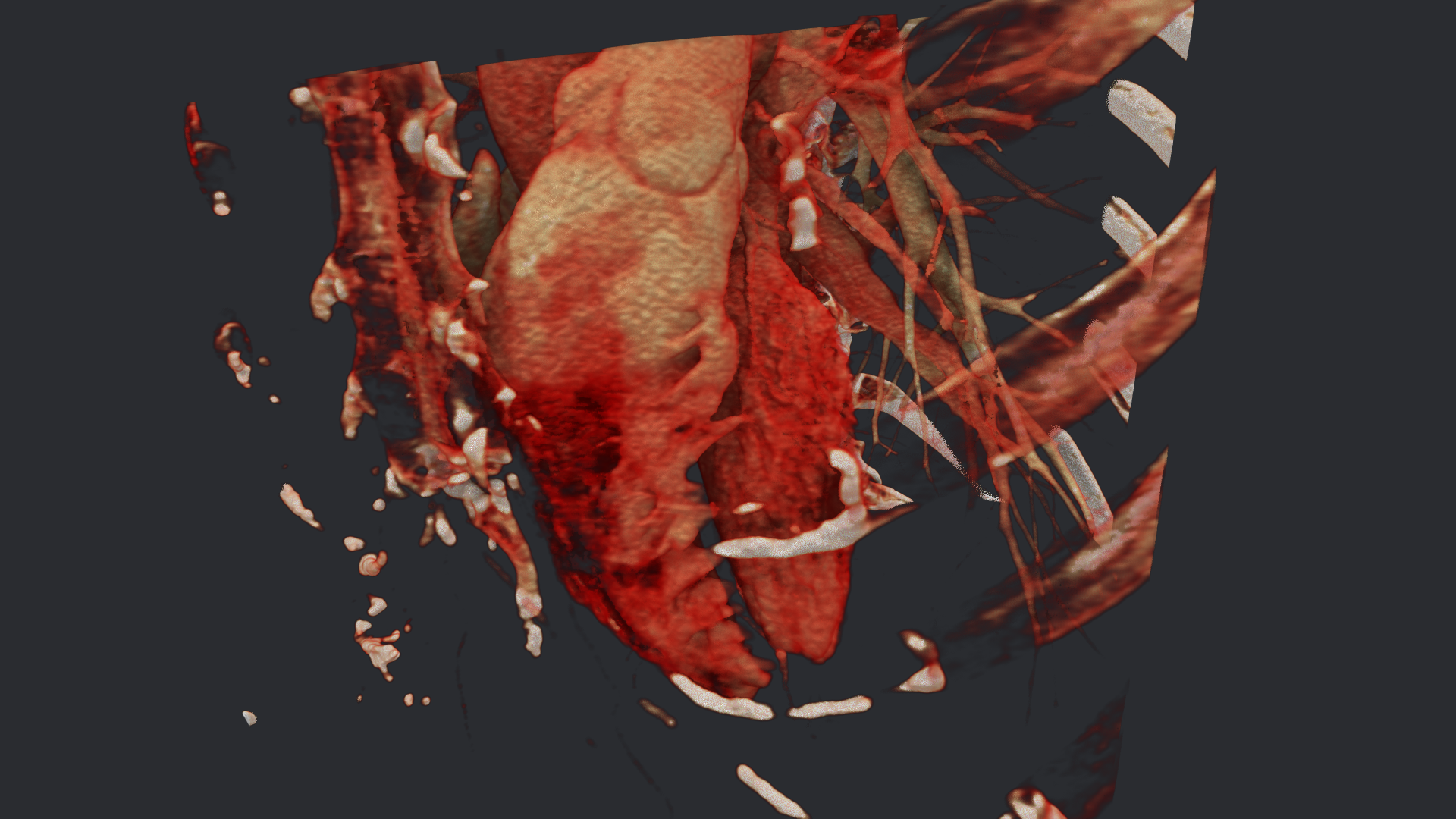

	advanced at ao_radius=0.1, ao_strength=0.5. All the light comes from the environment map, and a GTAO pass grounds what the volume contributes to it - the shell where accumulated opacity crosses one half. The crevices between vessels and the undersides of the ribs deepen, the chambers stop reading as blown out, and the whole frame gains contrast without anything moving.

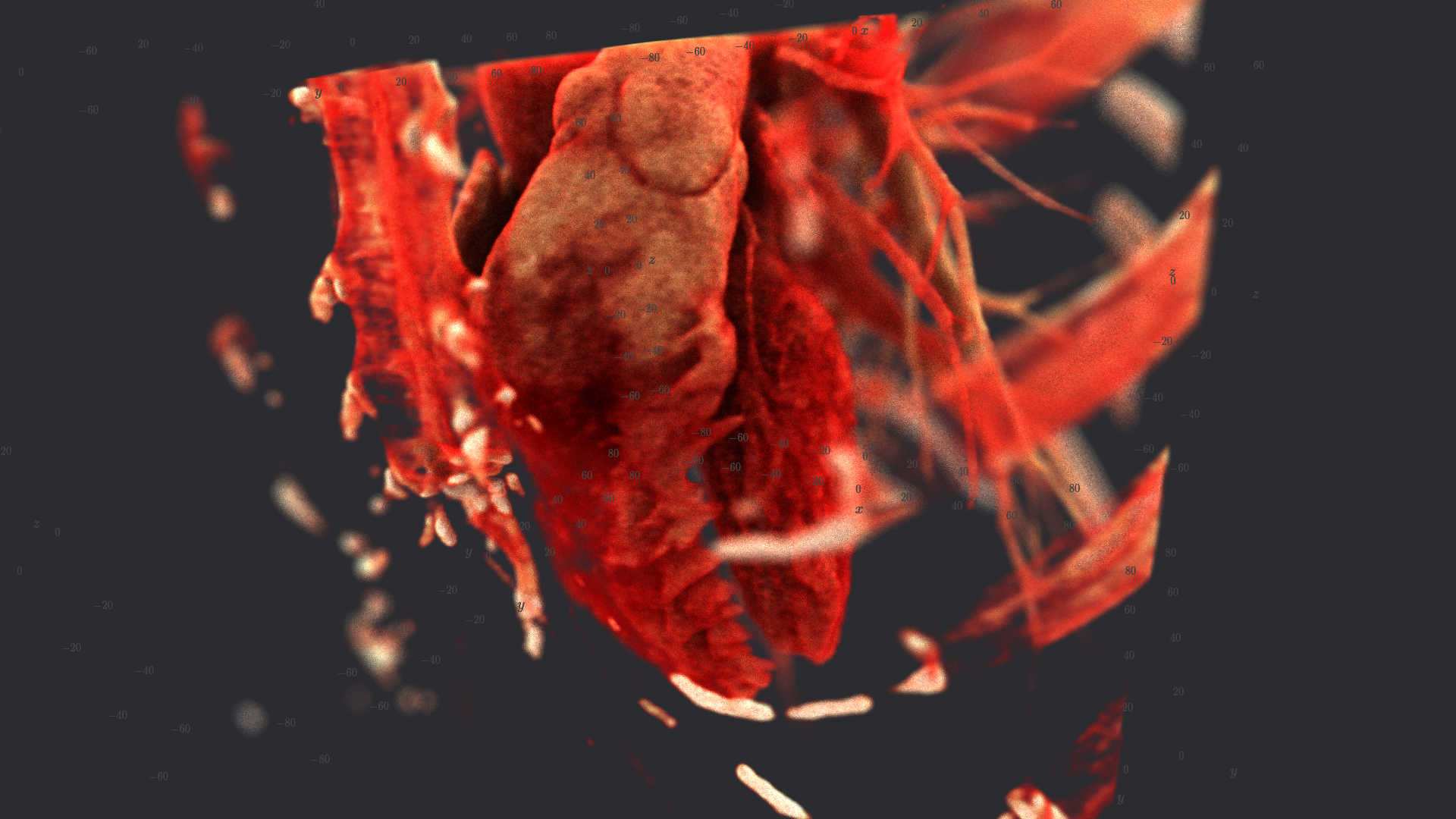

	cinematic at 128 samples with cinematic_denoise=2.0. Delta tracked as a participating medium: light that enters the tissue scatters inside it and is attenuated on the way out, so interiors go dark against the vessels that catch the light, and a density gradient steep enough to be a boundary shades as a surface rather than as gas. The ribs are defocused because the aperture is a real one. What grain is left is the price of a budget chosen for a docs build rather than for a final render.

Every one of the four is a full HD render - click it to open it at full size, because the difference between advanced and cinematic lives in detail a page-width figure loses.

Two things are deliberately not held constant, and both are worth knowing. The volume’s shadow is off in the first image and on in the second, which is the point of having both. And light_scale is 2.25, which lifts only the traced image, because the raster shader does not read it: the march lights every sample locally and counts the environment twice while the tracer attenuates, so at this density an unlifted traced image is much the darkest of the four and the comparison would be about exposure instead of about light.

In the path tracer

A volume is part of the light simulation. Its bounding box sits in the acceleration structure as the boundary of a medium, and inside it every ray - camera rays, bounced rays, shadow rays - is tracked through the 3D texture with the same transfer function the other renderers use. How much matter a ray meets matches the raster exactly: alpha_coef and the opacity function give the same optical depth here as in advanced, so a volume tuned there keeps its density here and only the lighting changes. Geometry inside the gas is shadowed by it and occludes it, the gas appears in reflections, and light scattered inside it is the environment’s.

Where the density changes sharply the medium is shaded as a surface: at every collision the tracer measures the change of the normalised intensity over one gradient_step and, with probability \(1 - e^{-8\,m}\) for a change \(m\), treats the point as a rough dielectric facing the falling density, with the transfer function colour and the volume’s own roughness and metalness. Bone and skin in a CT get highlights, Fresnel and an orientation; soft tissue with gentle gradients stays gas. Gas events scatter forward with a Henyey-Greenstein phase function (asymmetry 0.85, as measured tissue does), so light reaches deeper than an isotropic phase would let it:

What to expect from a physically traced volume, as opposed to the ray march:

• the march shades every sample locally and without occlusion, and lights it with the environment counted twice - its harmonics plus a directional light distilled from the same map - so a dense volume glows with its interior colours. The tracer attenuates instead, so the two agree only where the volume is thin: on a CT scan at alpha_coef 15 the traced image is the brighter of the two, at 200 it is a third of the march. Lower alpha_coef or a brighter colour map does here what it does to real fog, and roughness and metalness shape the highlights;

• the medium has its own exposure, light_scale on the volume, because a brighter environment lifts the whole scene while a dense volume needs more light than the geometry around it. It multiplies what reaches an event inside the medium, so every ratio in the image survives - a crevice stays as much darker than an exposed surface as it was - and only the exposure moves. It cannot rescue a pitch-black deep interior: where no light arrives there is nothing to multiply, and cinematic_bounces is what carries light in there;

• samples is not used: there is no fixed step to set. The tracker draws the distance to the next collision from the density itself, which needs no sampling rate and introduces no error of its own - cinematic_samples trades noise for time instead, and alpha_coef sets the cost, since it sets how often a ray is interrupted;

• the surface decision is made per collision from the local gradient, so a transfer function that ramps gently over a boundary gives a softer, gassier edge than one that steps; gradient_step sets the scale of the gradient, in the volume’s mean edge length, and is the same knob the other renderers use;

• cost follows the density in front of the ray, not the densest voxel in the box. The tracker keeps a grid of macrocells, each holding the largest extinction any point inside it can have, and walks that grid: a cell of air is crossed in one step, and a thin region is stepped at its own rate. On a 512x512x1319 CT scan with an opacity function rising across its colour range, 40% of the cells hold nothing at all and the mean majorant is a ninth of the global one, so an average ray tests about a ninth as many collisions - in exchange for a few hundred cell crossings, which are far cheaper than a sample of a volume too large to sit in cache. A ray straight through the densest bone still saves close to half, which is the honest limit: dense matter costs, and alpha_coef still sets how often a ray inside it is interrupted;

• one volume per plot is traced; any further volume stays on the raster overlay with a warning. So does a volume with a mask (mask, mask_opacities): the medium does not read the mask, and tracing the volume as if the mask were not there would be worse than not tracing it. So does a volume that carries colour per voxel, for the reason given above - the medium reads one channel as density and takes its colour from a transfer function, and there is no transfer function there to read;

• the medium needs two more texture units than the tracer’s surfaces do, one for its data and one for its majorant grid; a context that cannot provide fifteen keeps the volume on the raster overlay and says so once in the console.

mip is a maximum-intensity projection, a diagnostic view rather than a physical one, and stays what it was: ray-marched as in advanced, stopping at the first traced surface, and composited over the traced image outside the light simulation.

Colour per voxel

A scan can measure colour rather than a quantity to map. The Visible Human cryosections are photographs, and an RGB-encoded NIfTI carries them as three bytes a voxel. A 4D array of uint8 shaped [z, y, x, 3] or [z, y, x, 4] passed to volume, volume_slice or mip is drawn as the colour it is. Nothing is left for a colormap to do, so color_map and color_range are refused with a warning rather than quietly ignored, and the uint8 is kept rather than cast - a cast to float32 would quadruple a photographic volume without adding precision the data has.

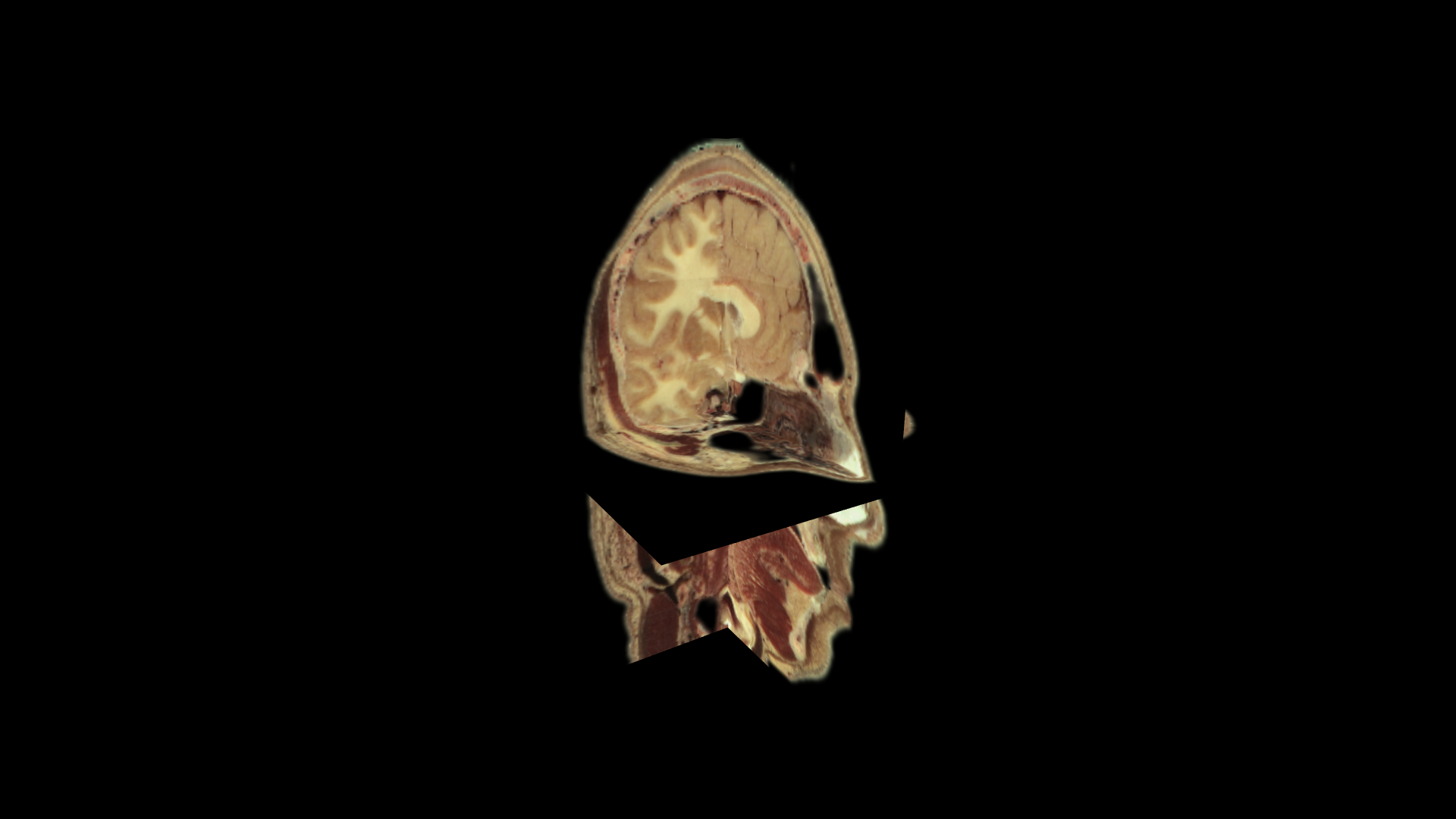

	volume_slice. A slice carries no lighting and no window, so what reaches the framebuffer is the bytes that went in: the renderer writes without a colour-space conversion, and the plane is the photograph.

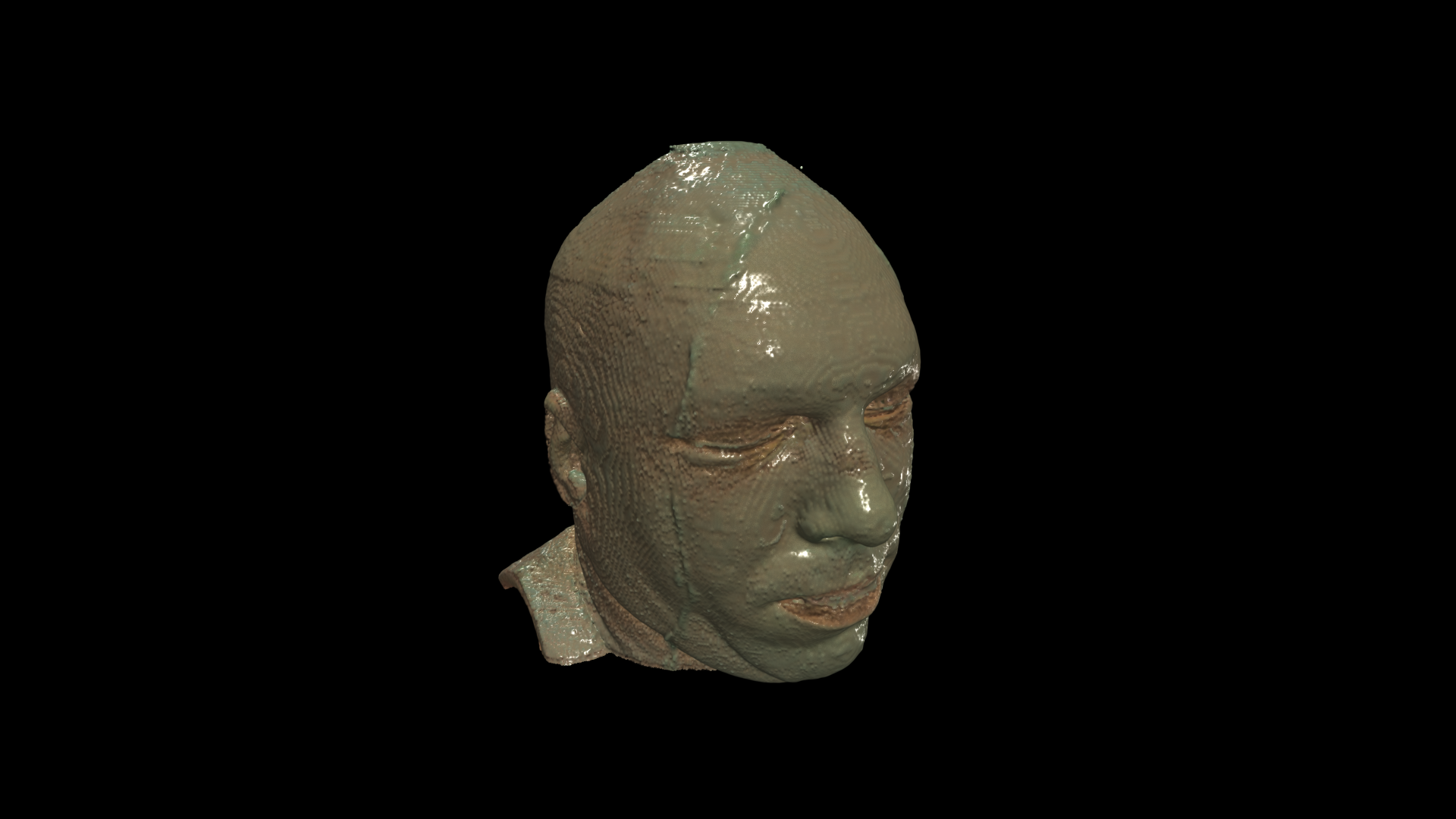

	volume. The same data marched, with the opacity ramp rising from 0.30 - low enough to leave the embedding medium behind, high enough to put the surface where the skin is already itself.

One thing has to be invented, and it is the alpha: the march has to know where to stop, and colour does not say. It comes from Rec. 709 luminance shaped by opacity_function, which is therefore the whole transfer function here, and the same luminance feeds the gradient the shader lights with, so a colour volume shades like any other.

Where that ramp rises matters more than it would for a scalar field, and it is the one thing to know before reaching for this. A volume is sampled trilinearly, so every surface has a rim where the texture fades in. A scalar field hides it: whatever value the ray stops at, the colormap turns it into a full-intensity colour. Here the value is the colour, so a ray stopping halfway up the rim paints a half-bright one. Measured on a white ball, a ramp rising from 0.02 renders it at 76 levels, the same ball with the ramp rising from 0.45 renders at 249, and with interpolation=False the low ramp renders at 255, because there is no rim to stop in. Start the ramp where the data is already itself.

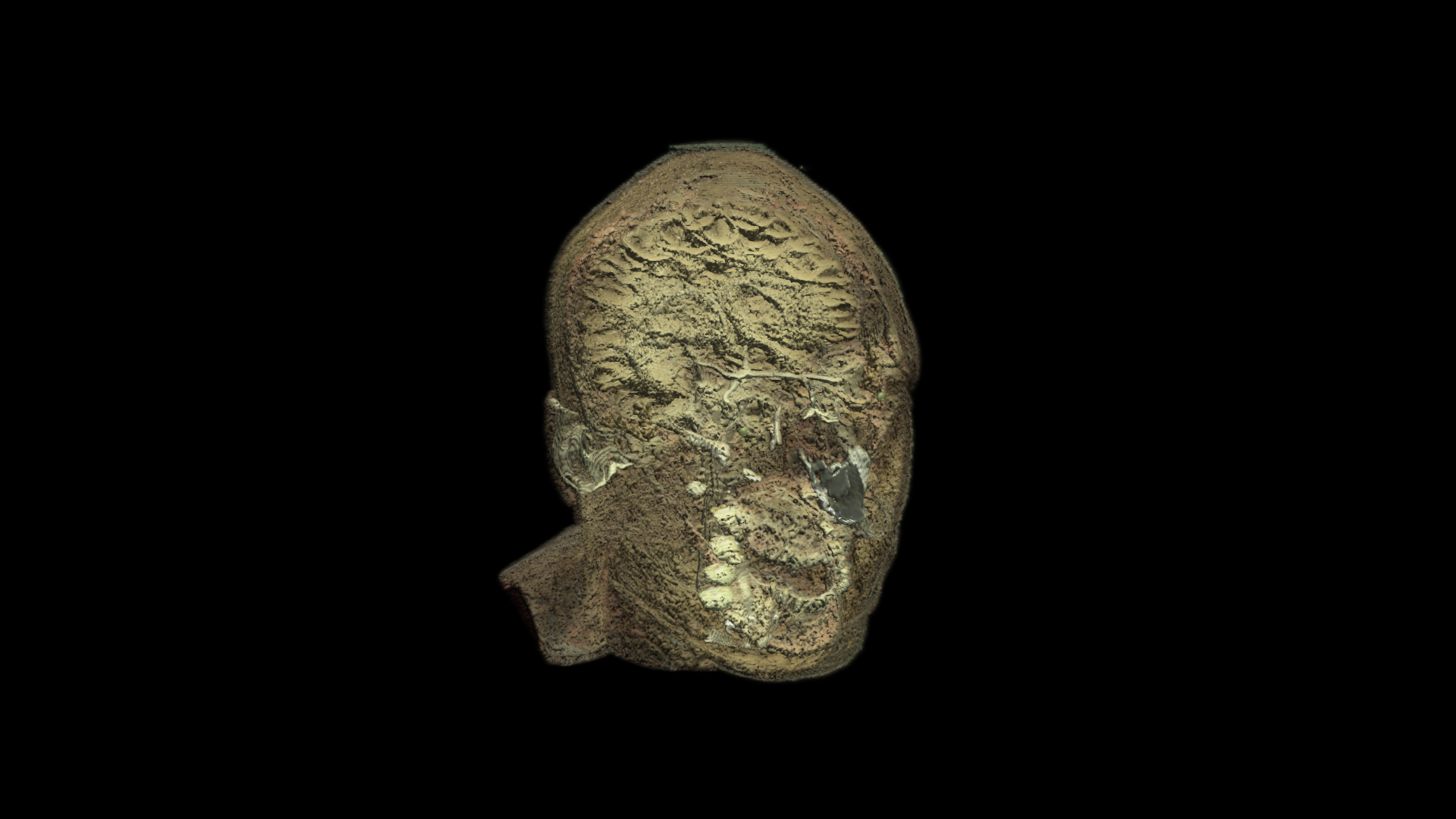

mip maximises that same luminance and keeps the colour of the voxel that reached it, because a maximum has to be a maximum of something. On this head that is bone and teeth, through the skin, in the colours they have:

The path tracer has no medium for this. Its density is a single channel and its colour comes from a transfer function, so an RGB volume stays on the rasterised layer with a warning, alongside a masked volume and any volume past the first.

Reading one is a question for the file, not for k3d. SimpleITK returns RGB24 straight as [z, y, x, 3] uint8, the order a volume is indexed in; nibabel hands the same file over as a structured dtype, one uint8 field per channel, which needs a view before it is an ordinary array. A film needs neither: (frames, height, width, 3) is already the shape, with time where depth usually goes. examples/volume_rgb.ipynb loads this head and ends with ten seconds of video as a space-time block.

Note

The head on this page is visiblehuman.nii.gz from niivue-images, an RGB24 NIfTI of Visible Human Project cryosection photographs (U.S. National Library of Medicine). 196 x 240 x 256 voxels at 1 mm, 36 MB unpacked.
